Saturday, September 10, 2016

Require is required but it can't find require.d.ts

I've just released a fairly significant update to the VSTS Extension Project Templates extension.  Recently a few of the ALM Rangers noticed that there was a problem with a missing TypeScript definition file that seemed to crop up out of nowhere.  The file (require.d.ts) was not in the template's file system previously as it had not been needed by the underlying VSS SDK definition files (VSS.d.ts and TFS.d.ts).  A recent change, however, has revealed that a new dependency was introduced:
To remedy this, I added the DefinitelyTyped d.ts file for RequireJS.  Many thanks to Wouter de Kort and Utkarsh Shigihalli for reporting this, and to David Corbin for helping me beta test this fix!

Now, this release wasn't just a hotfix.  There were several other enhancements and updates that made it in, thanks to suggestions from my friend Max Knor:
  • Changed PowerShell execution to PowerShell3 in task.json
  • Included vsts-task-sdk in Build/Release Task template
  • Added Trace-VstsEnteringInvocation and Trace-VstsExitingInvocation to example task PowerShell scripts
  • Updated versions for Grunt, Jasmine
For some great contributions to the VSTS extension pool, check out Max's extensions on the VS Marketplace:

Patching previous versions
If you've run into a roadblock with running or building your existing extension project, the easiest way to get back on track is to create a folder under the typings folder in the project for requirejs, and in that folder place a copy of the require.d.ts file:

Friday, April 29, 2016

Dashboard Widgets and Charting

Recently I was asked a question by someone in the community around how to properly construct a dashboard widget that contained custom charting/graphing components.  Specifically, the high-level functional requirements centered around:

  • Using TypeScript to manage the code versus inline JS in the widget's HTML
  • Using a charting library like Chart.js or HighCharts
The choice was made by the inquiring party to look into using HighCharts.  Now as a caveat, please keep in mind that using HighCharts for personal use is completely free.  If you plan on publishing a widget to the Marketplace, however, you will need to purchase the appropriate license to ensure you are in compliance.  Licensing in general can be a complex topic and is well beyond the scope of this post.
The idea behind this example is to make sure that someone with little experience can adequately use the VSTS Extension Project Template to:
  • create a new extension
  • add a dashboard widget to that project
  • add the appropriate libraries, and
  • wire up the widget to consume what it needs
Let's start with the basics, after creating a new extension project.

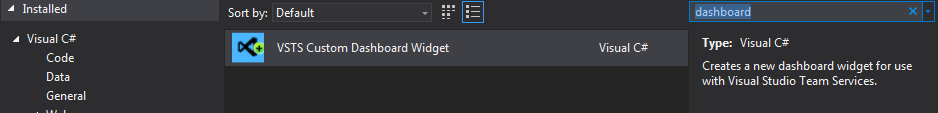

Right-click on the project and go to Add -> New Item.  We're going to add a new custom dashboard widget.

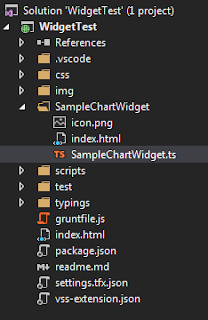

Name the widget whatever you like.  For the sake of this example, I have named it "SampleChartWidget".  The item template will add a generic image and generic HTML file underneath a folder named SampleChartWidget.  Let's go ahead and right-click on that new folder and add a new TypeScript file, which we'll call SampleChartWidget.ts for the sake of simplicity.
Now that we have the basic skeleton set up, let's update a couple of items that we'll need to make HighCharts work.  First stop will be the package.json file, where we will need to add a reference to "highcharts": "^4.2.4" in order to pull in the latest JS file the next time the project is built.  Once that's been saved, the next stop will be the Grunt file.  There are two things in here that will need to be altered.
One will be the task that performs the typings initialization (exec:tsdinit), which will require running that task after the file has been saved:

The other will be the task that copies the needed library file to the scripts folder (copy:main):
As a reminder, the Grunt file is already set up to run the npm update, copy step, and package step anytime you issue a build command in Visual Studio.

Once that editing is complete, build the project to pull in the newly added dependencies.  This will pull down the HighCharts library from npm, copy the HighCharts.js file to your scripts folder, and pull down the typings file for HighCharts as well.  We still need to make sure they are a part of the project, so don't forget to include them in the project by clicking on "Show all Files":
This will show you the newly copied JS file in your scripts directory (above) as well as the typings folder that you will need for constructing the TypeScript file:
Now that we have our prerequisites, we can move on to wiring up the chart.  Let's first start by adding some meat to our widget's TypeScript file.  We will want to add in two reference lines at the top, one to pull in the typings referenced in the tsd.d.ts file (consolidated links for the VSS, TFS and RMO typings supplied by the vss-web-extension-sdk) and the other for the typing file we just downloaded for HighCharts.  Once that has been added, a class declaration can be added for a very simple widget class, with one method for initializing the chart.  Next, we will add a variable to the exports section that will hold a new instance of our SampleChartWidget class, making it ready to be used by the VSS SDK.  Finally, we can dump in some simple initialization code to turn a named element into a chart.  Sample code is courtesy of the HighCharts JSFiddle.
Having completed the working bits, we can now move on to setting up the HTML that will display this new chart.  We need to wire up the section that registers the widget, allowing for the new TypeScript file to be injected via Require.  We also need to include an element in the body that will act as the target for HighCharts to render the chart to.  Once that's complete, ensure that the references to VSS.SDK.js and highcharts.js are properly marked in your HTML file.  I've optionally added the rel to a central stylesheet.

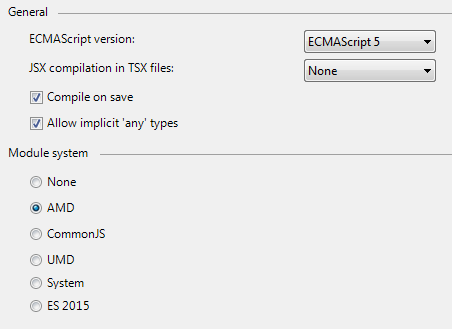

A couple of additional caveats to pay attention is the sizing of the widget itself.  Some graphs or charts may require a specific amount of screen real estate.  Being mindful of how you're rendering the graph is important as you have a maximum of four rows and four columns on any dashboard.  I chose to use a 4x3 for this example, but this can be adjusted based on need.  Resizing the widget will mean needing to resize the container element as well, so extra care and testing needs to go into that prior to releasing anything into the wild.  Another thing to be mindful of is the project's TypeScript build settings.  In order to have this solution build and create the right JS, you will need to make sure that the build setting is pointed at AMD.

Again, this is an example and is not meant to be taken as anything but an illustrative way to begin hooking up charting and graphics libraries in dashboard widgets.  Please be mindful of any licensing and/or component performance concerns while developing.  Official documentation from Microsoft in relation to authoring widgets with charts and graphs will be forthcoming, so stay tuned and watch the space.

For those interested, source code can be found here.

Tuesday, April 19, 2016

Version 2.4.0 of the VSTS Extension Project Template released

I've just released version 2.4.0 of the VSTS Extension Project Template extension for Visual Studio.  This release includes a new Item Template for the Dashboard Widget.  Special thanks to Utkarsh Shigihalli for the suggestion!  The template itself is quite basic but will get you moving in the right direction.  For more information on dashboard widget development, please refer to the fabulous VS integration documentation.  You can also refer to the ALM Rangers blog post on creating widgets.

As always, candid feedback is welcome!

Saturday, February 27, 2016

A Two-Fer Release

I've just released version 2.3 of the VSTS Extension Project Templates, following a silent release of version 2.2 a few days ago.  Updates include:
  • Updated manifest for build extension to highlight specifics on task contributions
  • Modified gruntfile in build extension to allow for task publish, extension package, and extension publish
  • Added support for parameters with gruntfile in both project templates
Version 2.4 will include item templates for VSTS dashboard widgets.  Stay tuned!

Sunday, February 21, 2016

Updates to Build.vNext agent Docker images

I've just released some new updates to my VSTS Build.vNext Docker images, including:
  • Support for the Azure xplat CLI
  • Specific image for Ruby-based applications
Head over to the Docker Hub to check it out, or simply run 'docker pull jgarverick/vsoagent'!

Friday, February 19, 2016

RadioTFS - What an honor!

Episode 107 of RadioTFS was just released, wherein yours truly was the "special" guest.  I had a blast talking with Greg, Martin and Paul and delving into some great topics.  Cruise on by the RadioTFS site and check it out!

Thursday, February 18, 2016

VSTS Extension Project Templates - Version 2.1.1

I've just released an update to my Visual Studio extension, which adds a new project template for VSTS build/release tasks as well as an item template for an individual build/release task.  Stay tuned for more updates--I've had some feature requests come in and can't wait to get started on them!
